Design Series Architectural-grade 90+ Cri

See Specifications for SKU options

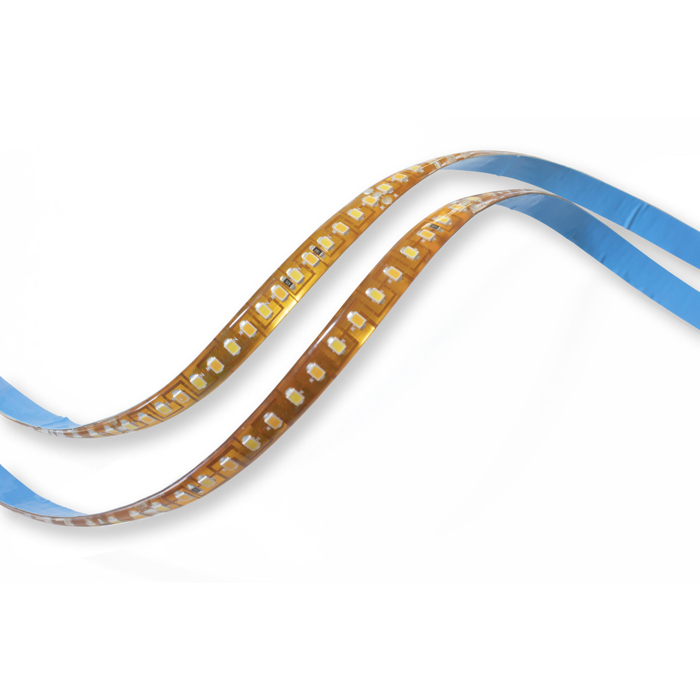

The Design Series is an architectural-grade 24V LED strip lighting that ensures proper execution of design intentions in both an indoor (IP65) or outdoor, wet (IP68) application for accent or ambient lighting. This series has a high performance 90+ CRI/ 3-step MacAdam/ UL Certified/ JA8-Title 24/ PoE compatible/ smooth, flicker-free dimming down to 0.1%. The LED tape has 3M adhesive backing for direct install or to install with clips or in one of our channels for a more finished look.

  • Static White  Tunable White

  • Damp-Dry  Dry-Indoor  Wet

  • 24V

  • 90+

Availability:

Options Include:

  • Static White (2200K, 2500K, 2700K, 3000K, 3500K, 4100K, 5500K):
  • DS 64   = 164-309 lm/ft;  2.4 w/ft;  31.0' max run;  4.92" cut mark
  • DS 128 = 205-328 lm/ft;  3.6 w/ft;  22.9' max run;  2.46" cut mark
  • DS 160 = 272-424 lm/ft;  4.4 w/ft;  18.0' max run;  1.97" cut mark
  • DS 240 = 444-605 lm/ft;  6.6 w/ft;  13.8' max run;  1.31" cut mark
  • Tunable White (2100K - 5400K):
  • DS 128 = 109-272 lm/ft;  3.7 w/ft;  16.0' max run;  4.90" cut mark
  • DS 160 = 138-343 lm/ft;  4.5 w/ft;  13.1' max run;  3.91" cut mark


See Specifications For SKU Options:

download H2-Series-Spec-Sheet-2.pdf

download Nova-Flex-H2-Series-Photometrics_Sept2021 (2).zip

download Install-Booklet-Ribbon-Neon-Channel.pdf
